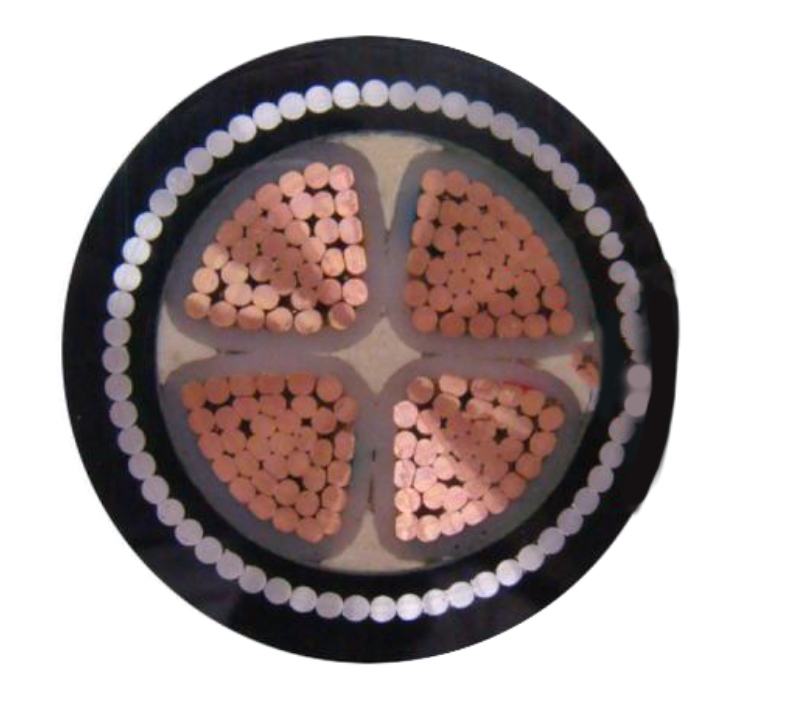

YJV32 XLPE insulated power cable(0.6-1KV)

Features: Scope of application: Features of AC transmission and distribution lines with rated voltage Uo/U of 0.6-1KV and below: High mechanical strength, good environmental stress resistance, excellent electrical performance and chemical corrosion resistance, light weight and simple structure. Easy to use.

INQUIRY

Product Details

Standard:	GB/T2706-2008
Brand:	Cantonu Wires & Cables
Model:	YJV、YJV32
Conductor Material:	OFC（copper content：99.99%）
Cores Number:	YJV（1-5）、YJV32（2-5）
Insulator Material:	Crosslinked polyethylene
Specification:	YJV（1 Core）: 1.5~800mm² YJV（2 Cores）: 1.5-800mm² YJV（4 Cores）:1.5-800mm² YJV（4 Cores）: 1.5-800mm² YJV（5 Cores）: 1.5-800mm² YJV32（2 Cores）: 1.5-800mm² YJV32（3 Cores）:1.5-800mm² YJV32（4 Cores）: 1.5-800mm² YJV32（5 Cores）:1.5-800mm²
Nominal Voltage:	0.6-1KV and below
Colors:	Red Yellow Yellow-green Blue Green White Black

Cross-linked polyethylene insulating power cable with high mechanical strength, good resistance to environmental stress, excellent electrical properties and resistance to chemical corrosion and so on characteristics, light weight, simple structure, easy to use.

Feature of product:

1. insulation wire core identification using color belt or pigment color difference.
2. multi-core cable USES compression fan design, stable structure, light weight, small diameter.
3. with excellent electrical properties, high breakdown electric field intensity.
4. small dielectric loss Angle tangent value of tan delta, high insulation resistance.
5. a higher heat resistance and anti-aging properties, allowable operating temperature, load flow.
6. cable can bear external mechanical forces and large tensile resistance, simple installation maintenance.

Technical Parameters:

1. the conductor dc resistance conforms to the requirements of GB/T3956-2008.
2. the finished cable insulation performance meet the requirements of GB/T12706.1. And should be subjected to 3.5 kV ac voltage test for 5 minutes without breakdown.

Conditions of Use:

1. cable laying, installation of the environment temperature is not lower than 0℃, the bending radius should not less than 12 d cable diameter.
2. cable conductor of the highest working temperature for a long time does not exceed 90℃.
3. short circuit (the longest duration of no more than 5 s) cable conductor of the highest temperature does not exceed 250℃.

Model and use:

Copper core model	Name	Scope
YJV	Copper cross-linked polyethylene insulated PVC sheathed power cable	In laying indoors, in tunnel, in cable trench and pipeline, can also be buried in the soil of loose, cable traction, can bear certain occasions but unable to bear external mechanical forces. Single core cable in magnetic duct is not permissible.
YJY	Copper crosslinked polyethylene insulated, PE sheathed power cable
YJV22	Copper core with cross-linked polyethylene insulation tape, Steel belt armored PVC sheathed power cable	Suitable for laying indoors, in tunnel, cable trench, and directly buried installation underground (buried depth: apart from the ground 0.7 m or higher), cable is able to bear external mechanical forces, but unable to bear large pulling force
YJV32	Copper core with cross-linked polyethylene insulation tape, steel wires armored PE sheathed power cable
